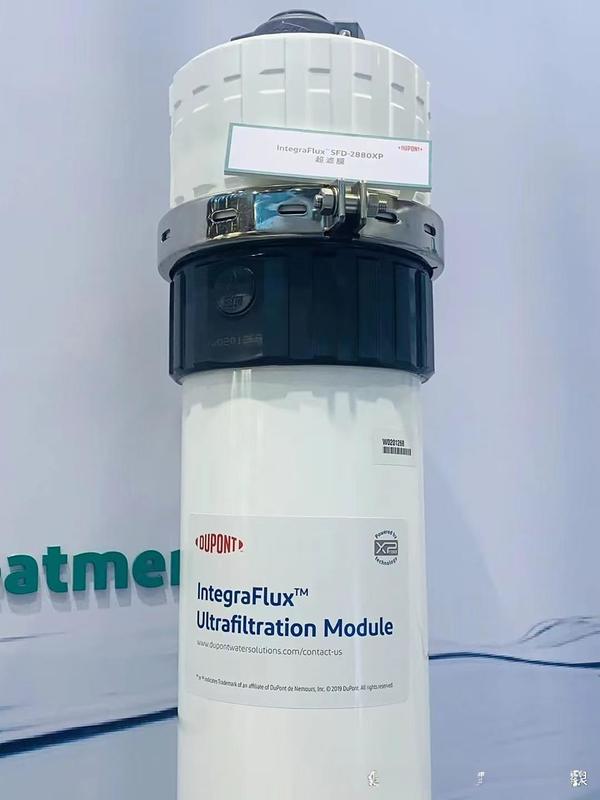

High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	Dupont
Certificação:	CE
Número do modelo:	Integratec ™ XP 77 IG (anteriormente SFP 2880XP)
Documento:	UF-IntegraTec-P-Series-PVDF...49.pdf

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 pc
Preço:	Negociável
Detalhes da embalagem:	Embalagem de exportação padrão
Tempo de entrega:	5-8 dias de trabalho
Termos de pagamento:	Western Union, T/T.
Habilidade da fonte:	60000 unidades por mês

Contato

Todos os Produtos

caixa de distribuição da iluminação (33)

caixa de distribuição elétrica (33)

Caixa de distribuição à prova de intempéries (48)

Caixa do cerco da fibra de vidro (60)

Interruptor automático de transferência do ATS (68)

Módulos EDI (139)

Módulos de membrana de ultrafiltração (62)

interruptor industrial (85)

sistema solar do picovolt (72)

Estação de carregamento elétrica de EV (21)

Relés modulares do sincronismo (12)

Relés de controle da automatização (64)

Transformador do regulador de tensão (16)

Balões da iluminação do filme (136)

Luz do balão da lua (131)

Balões do diodo emissor de luz do tripé (115)

Torre clara inflável (62)

Acessórios do bloco de terminais (6)

Descrição de produto detalhada

XP 77 Área de membrana eficaz Ig:	8 polegadas	Taxa de fluxo de Ig 77 Ig por módulo:	2,0–8,5 m³/h (8,8–37,6 gpm)
XP 77 Ig Max Pressão de alimentação:	6,25 bar (90,65 psi) a 20 ° C	XP 77 Diâmetro do poro ignominal de XP 77 Ig:	0,03 µm
XP 77 Ig Max Backwash Pressão:	2,5 bar (36 psi)	Máx. Operando o TMP deste módulo:	2.1 bar
Fluxo máximo de limpeza de ar operacional deste módulo:	12 nm3/h	XP 77 Uso IG:	Tratamento de água em larga escala
XP 77 IG Adavantage:	Alto fluxo

High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production

Featuring exceptional fouling resistance and stable high-flux performance, the DuPont IntegraTec XP 77 IG ultrafiltration membrane delivers reliable water purification for critical industrial applications. This advanced membrane provides excellent removal rates for bacteria, viruses, and endotoxins while maintaining low energy consumption and minimal maintenance requirements.

Ideal for pharmaceutical manufacturing, microelectronics production, and healthcare water systems, this membrane ensures compliance with stringent quality standards while offering sustainable operation with reduced chemical usage and wastewater generation.

Product Specifications

Attribute	Value
Effective membrane area	8 inch
Flow rate per module	2.0–8.5 m³/hr (8.8–37.6 gpm)
Max feed pressure	6.25 bar (90.65 psi) at 20°C
Nominal pore diameter	0.03 µm
Max backwash pressure	2.5 bar (36 psi)
Max operating TMP	2.1 bar
Max operating air scour flow	12 nm3/hr
NaOCl (max.)	2,000 mg/L
Certifications	ISO 9001, NSF, CE
Application	Pharma and Beverage

Product Description

The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.

Key Features

Superior Filtration Efficiency
- 0.03 µm nominal pore size: Effectively removes bacteria, viruses, colloids, and particulates
- High-flux design: 35% higher permeability than previous-generation modules
Robust Construction & Reliability
- PVDF hollow-fiber membrane: Exceptional mechanical strength and chemical resistance (pH 2-11)
- U-PVC housing: Eliminates the need for external pressure vessels
Optimized Operational Economics
- Outside-in flow configuration: Tolerates feedwater with high suspended solids
- Innovative end-cap design: Simplifies piping and saves space

Technical Specifications

Model	Type	Membrane Area (m²/ft²)	Module Volume (Liters/Gallons)	Weight (Kg/lbs)
XP77 IG	Industrial	77 / 829	39 / 10.3	61/100 (empty) 135/220 (water filled)
XP77	NSF/ANSI 61 and 419	77 / 829	39 / 10.3	61/100 (empty) 135/220 (water filled)

Operating Parameters

Parameter	SI Units	US Units
Filtrate Flux @ 25ºC	40-110 l/m2/hr	24-65 gfd
Flow range	2.0 - 8.5 m3/hr	8.8 - 37.4 gpm
Temperature	1-40ºC	34-104ºF
Max. inlet module pressure (@ 20ºC)	6.25 bar	90.65 psi
Max. operating TMP	2.1 bar	30.5 psi
Max operating air scour flow	12 nm3/hr	7.1 scfm
Max backwash pressure	2.5 bar	36 psi
Operating pH	2-11
NaOCl (max.)	2,000 mg/L
Particle size (max.)	300 µm
Flow configuration	Outside in, dead end flow

For application cases, please visit: www.fgwater.com/Industries/

About FG Water Technologies

FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment equipment design, manufacturing, trading and shipment served for main industrial sectors.

Our main products include a variety of water purification and treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water reverse osmosis (BWRO), ultrafiltration (UF) system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners.
